STANDARD FEATURES
Material: Aluminum, steel or stainless steel available
Frame: 1/4”material with integral anchoring systems
Covers: 1/4”diamond plate reinforced for 300 PSF Pedestrian loads
Hardware: All 316 SS nuts, bolts and washers
Hold-Open Device: 316 SS Hold-open arm with secondary latch mechanism
Lock device: Staple for padlock protrudes through cover
Lift Handle: Recessed aluminum lift handle lays flush with top of cover
Warranty: Ten (10) on aluminum, five (5) years on steel and stainless steel

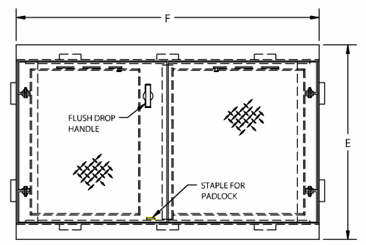

SPECIFICATIONS: The floor access door shall be Model APD as manufactured by U.S.F. Fabrication, Inc. with the size being specified on the plans. Door leaves shall be 1/4-inch thick steel diamond plate reinforced for a 300 p.s.f. live load. The frame shall be 1/4-inch thick steel angle with anchors welded to frame for casting into concrete. The floor access door shall be equipped with a flush steel lifting handle that does not protrude above the cover, and 316 stainless steel hold open arms with secondary latch mechanism that automatically keep the covers in their upright, open positions. The door shall have tamper resistant hinges with recessed stainless steel pins and lugs. A staple for a padlock shall be supplied for security. The floor access door shall be furnished with one coat of shop primer. Installation shall be in accordance with the manufacturer’s attached instructions. The door shall be manufactured and assembled in the United States.
OPTIONAL FEATURES
- 316 Stainless steel watertight slamlock and other locking devices
- Stainless steel horizontal springs or gas shocks for easy opening
- Frame skirts for easy casting into a concrete top slab
- Nut rails with stainless steel sliding nuts for attaching cable holders, brackets & other hardware
- Fiberglass insulation with metal liner
- Custom lettering
- Stainless steel safety chains
- Fall Through Protection Systems
- Hot dipped galvanized finish
- Mill finish (no shop primer)
- All 304 stainless steel material
- All 316 stainless steel material
- Slip resistant surface bonded to cover plate
- Hinge covers on same long side
- Reading Lid
