STANDARD FEATURES
Material: Aluminum, steel or stainless steel available
Frame: N/A

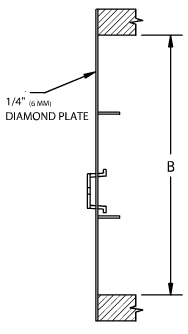

Covers: 1/4” diamond plate reinforced for 300 PSF Pedestrian loads
Hardware: All 316 SS nuts, bolts and washers
Hold-Open Device: N/A
Lock device: Staple for padlock protrudes through cover
Lift handle: Recessed lift handle(s) lay flush with top of cover
Warranty: Ten (10) years on aluminum, five (5) years on steel and stainless steel
SPECIFICATION: The basin cover shall be Model BPC as manufactured by U.S.F. Fabrication, Inc. with the size being specified on the plans. Cover plate shall be 1/4-inch thick aluminum diamond plate reinforced for a 300 p.s.f. live load. The fixed section of the cover shall have three 5/8-inch diameter holes equally spaced on the perimeter to bolt it down to the structure. The access door shall be equipped with a flush lifting handle that does not protrude above the cover. The door shall have a 316 stainless steel continuous hinge and 316 stainless steel tamper proof bolts/locknuts, which allow the cover to open a full 180 degrees. A staple for a padlock shall be supplied for security. Installation shall be in accordance with the manufacturer’s attached instructions. The door shall be manufactured and assembled in the United States.
OPTIONAL FEATURES
- Nut rails with stainless steel sliding nuts for attaching cable holders, brackets & other hardware
- Custom lettering
- Anodized finish
- Covers to fit square or rectangular basins.
- Holes for vents, pipe couplings and other hardware
- Slip resistant surface bonded to cover plate
- All steel or stainless steel material
