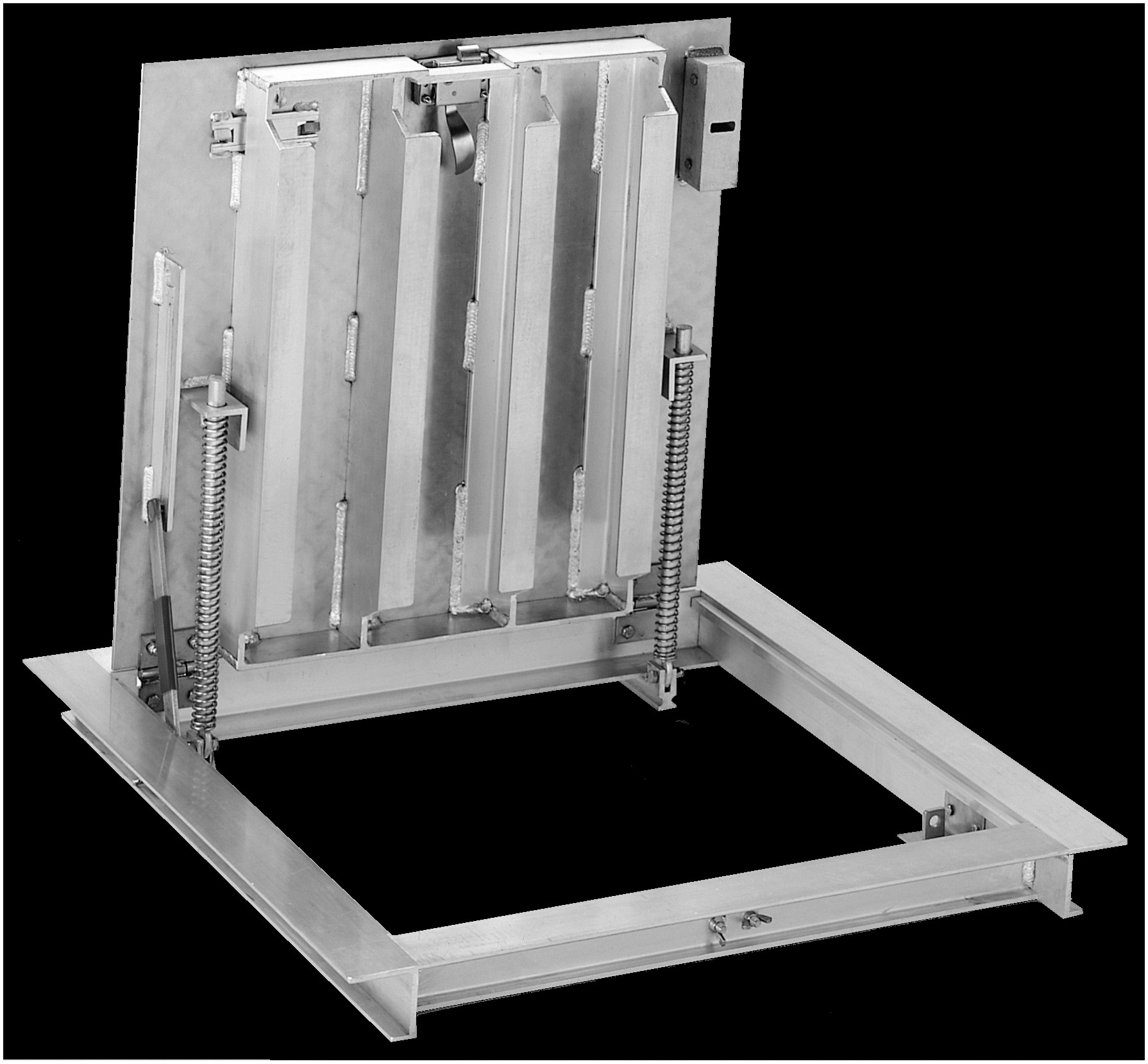

The heavy-duty angle type floor access door is designed for interior and exterior applications where watertightness is not required. It is designed for off-street locations that may occasionally receive AASHTO H-20 wheel loads. NOT DESIGNED FOR PARKING LTOS OR OTHER PAVED AREAS.
Material: Aluminum, steel or stainless steel available
Frame: 1/4” material with integral anchoring systems. All parts of the frame coming in contact with concrete shall be coated with bituminous paint

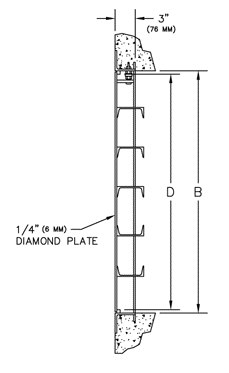

Covers: 1/4” diamond plate reinforced for AASHTO H-20 wheel loads
Hardware: All 316 SS nuts, bolts and washers
Hold-Open Device: 316 SS Hold-open arm with secondary latch mechanism
Lock device: 316 SS slamlock with threaded plug, removable outside key and fixed inside handle
Lift Assist: Springs or gas shocks
Lift Handle: Recessed aluminum lift handle lays flush with top of cover
Warranty: Ten (10) on aluminum, five (5) years on steel and stainless steel
SPECIFICATIONS: The floor access door shall be Model AHS as manufactured by U.S.F. Fabrication, Inc. with the size being specified on the plans. Door leaf shall be 1/4-inch thick steel diamond plate reinforced for an AASHTO H20-44 wheel load. Upon request, manufacturer shall provide structural calculations showing that the door design meets the loading requirements of AASHTO H20-44. (The floor access door is designed for off-street locations that may occasionally receive AASHTO H20-44 wheel loads.) The frame shall be 1/4-inch thick steel angle with anchors welded to frame for casting into concrete. The floor access door shall be equipped with a flush steel lifting handle that does not protrude above the cover, and a 316 stainless steel hold open arm with secondary latch mechanism that automatically keeps the cover in its upright, open position. The door shall have tamper resistant hinges with recessed stainless steel pins and lugs. The door shall have stainless steel open horizontal springs to assist in opening the cover and reducing the force during closing. The door shall be equipped with a watertight 316 stainless steel slamlock with threaded plug, removable outside key, and fixed inside handle. The slamlock latches onto a 316 stainless steel striker plate that is bolted to the frame. The floor access door shall be furnished with one coat of shop primer. Installation shall be in accordance with the manufacturer’s attached instructions. The entire frame including the seat on which the reinforcing rests shall be supported by concrete or other material designed to support the specified load. The door shall be manufactured and assembled in the United States.
With the Custom Drawings you can create a custom access door to meet your specific application and:
|
