STANDARD FEATURES
Material: Aluminum, steel or stainless steel available
Frame: 1/4”material with integral anchoring systems
Covers: 1/4”diamond plate reinforced for 300 PSF Pedestrian loads
Hardware: All 316 SS nuts, bolts and washers

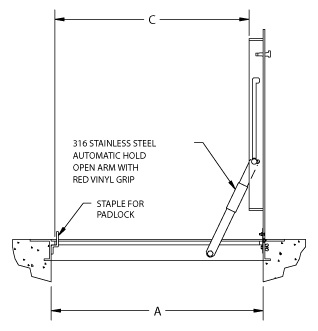

Hold-Open Device: 316 SS Hold-open arm with secondary latch mechanism
Lock device: Staple for padlock protrudes through cover

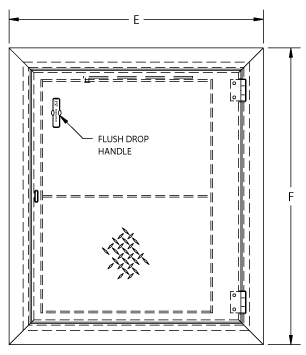

Lift Handle: Recessed aluminum lift handle lays flush with top of cover
Warranty: Ten (10) on aluminum, five (5) years on steel and stainless steel

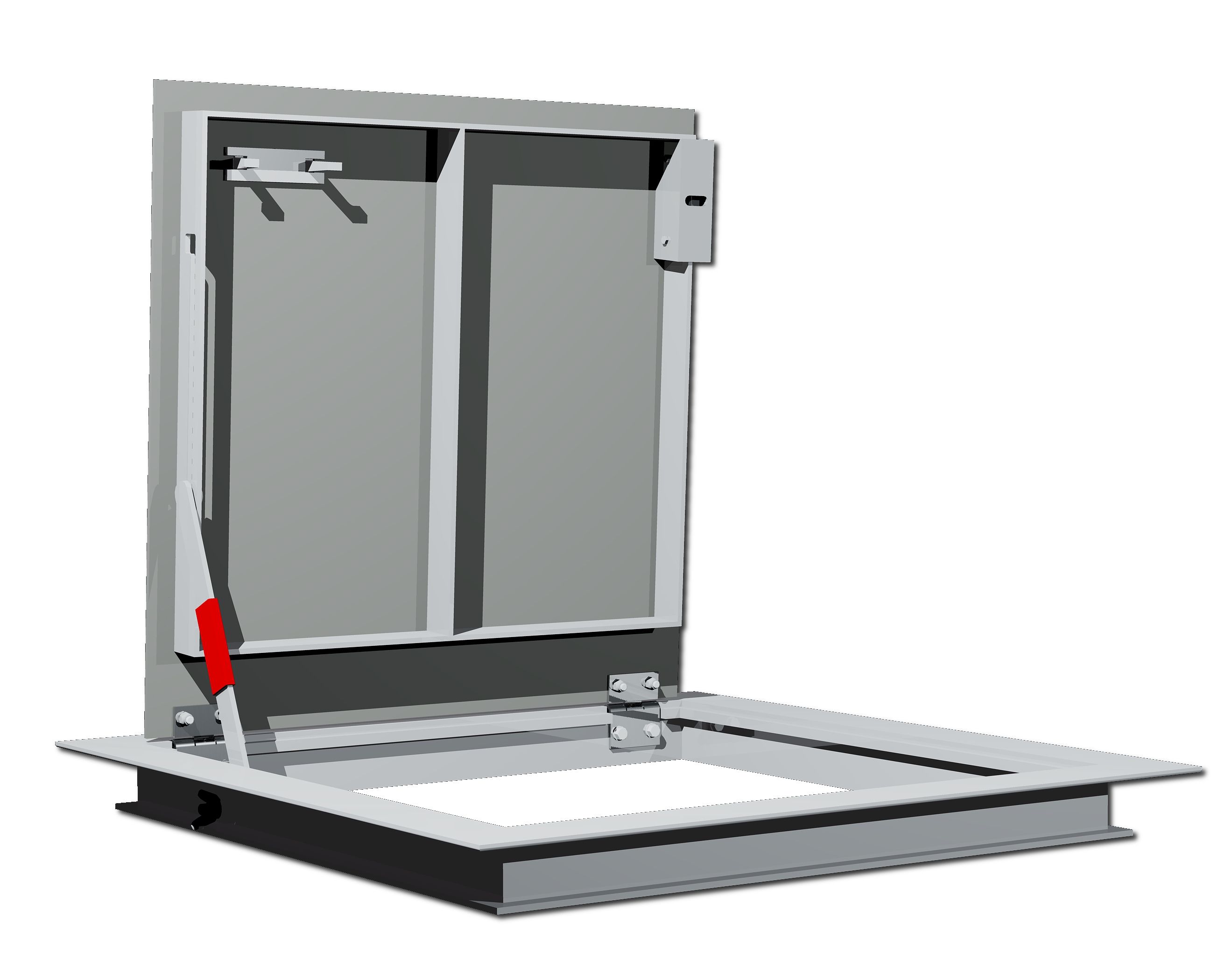

SPECIFICATIONS: The floor access door shall be Model APS as manufactured by U.S.F. Fabrication, Inc. with the size being specified on the plans. Door leaf shall be 1/4-inch thick aluminum diamond plate reinforced to a 300 p.s.f. live load. The frame shall be extruded aluminum with an integral anchor flange and door seat on all four sides. The floor access door shall be equipped with a flush lifting handle that does not protrude above the cover, and a 316 stainless steel hold open arm with secondary latch mechanism that automatically keeps the cover in its upright, open position. The door shall have 316 stainless steel hinges with 316 stainless steel tamper resistant bolts/locknuts. A staple for a padlock shall be supplied for security. Installation shall be in accordance with the manufacturer’s attached instructions. The door shall be manufactured and assembled in the United States.
OPTIONAL FEATURES
- Stainless steel horizontal springs or gas shocks for easy opening
- 316 Stainless steel watertight slamlock and other locking devices
- Bituminous coating on frame surface in contact with concrete
- Frame skirts for easy casting into a concrete top slab
- Cushion for noise dampening
- Fiberglass insulation with metal liner
- Nut rails with stainless steel sliding nuts for attaching cable holders, brackets & other hardware
- Custom lettering
- Anodized finish
- Stainless steel safety chains with aluminum support posts
- Fall Through Protection Systems
- Slip resistant surface bonded to cover plate
- Reading Lid
- RETROFIT applications are also available. Please see the Aluminum Retrofit Angle Frame Section located under: Our Products / Aluminum floor Access Doors
