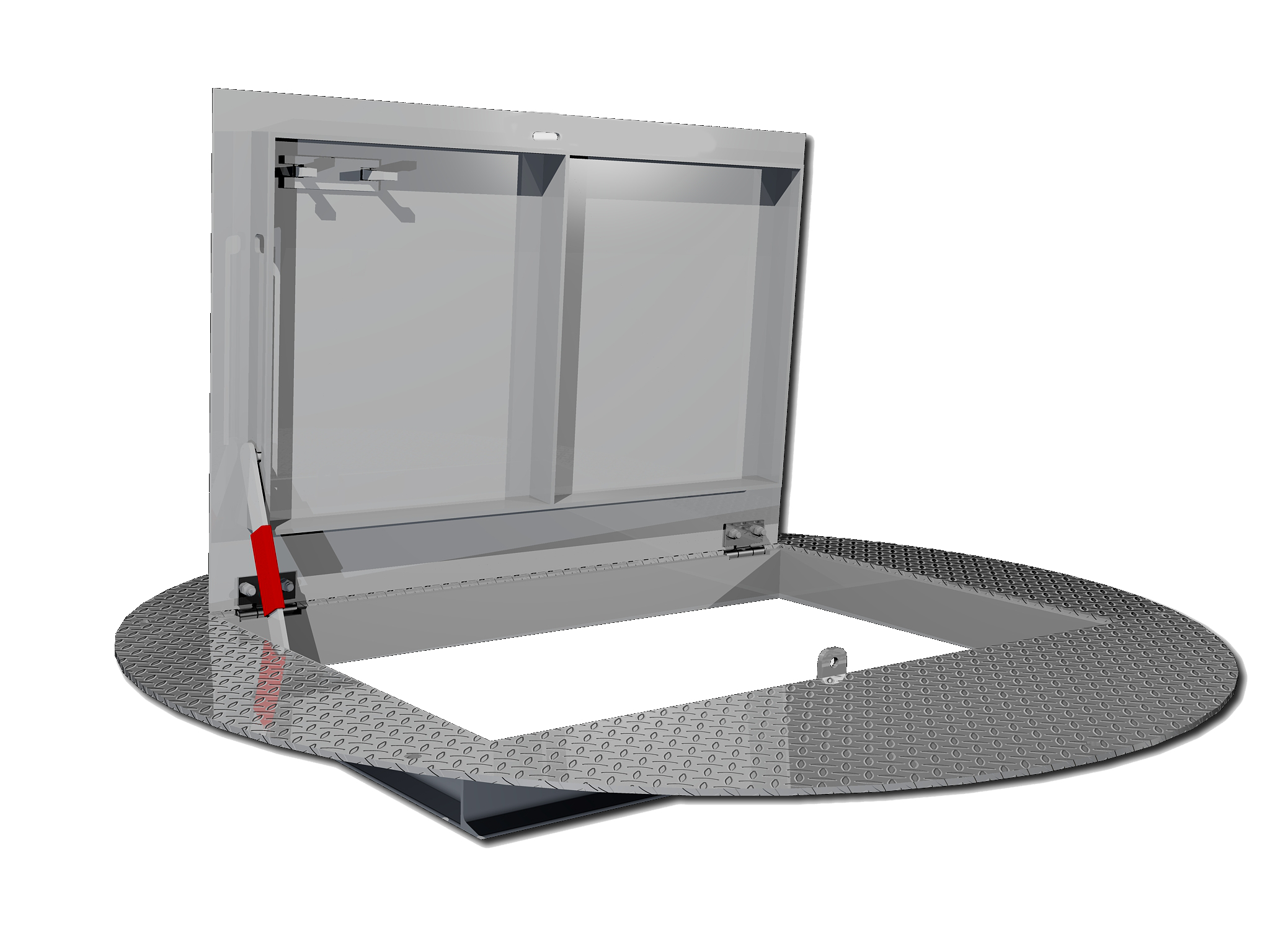

These round basin covers with an integrated access hatch are designed for interior and exterior applications where watertightness is not required. The cover is to be bolted onto a concrete or fiberglass basin.
.jpeg "BPS")

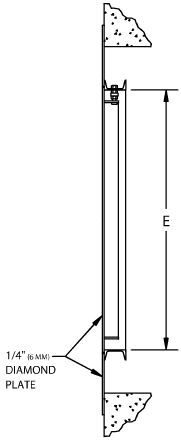

Cover Plate: 1/4-inch (6.4mm) aluminum diamond plate cover reinforced for 300 psf (1465 kg/m2) live load with six 5/8-inch (16mm) diameter holes equally spaced around perimeter for bolting to the existing structure.
Integral Door:1/4-inch (6.4mm) aluminum diamond plate cover reinforced for 300 psf (1462 kg/m2) live load. Equipped with cast aluminum flush lifting handle and 316 stainless steel hold-open arm with red vinyl grip that automatically keeps the cover in its open/upright position.
Hardware: 316 stainless steel hinges and tamper resistant bolts/lock nuts.
Security: Aluminum staple protrudes through door cover for user supplied padlock.
Finish: Cover and integral door are mill finish aluminum.
Installation: Installation shall be in accordance with the manufacturer’s instructions.
Warranty: Manufacturer shall guarantee against defects in materials and workmanship for a period of ten?years.
With the Custom Drawings you can create a custom access door to meet your specific application and:
|
|
