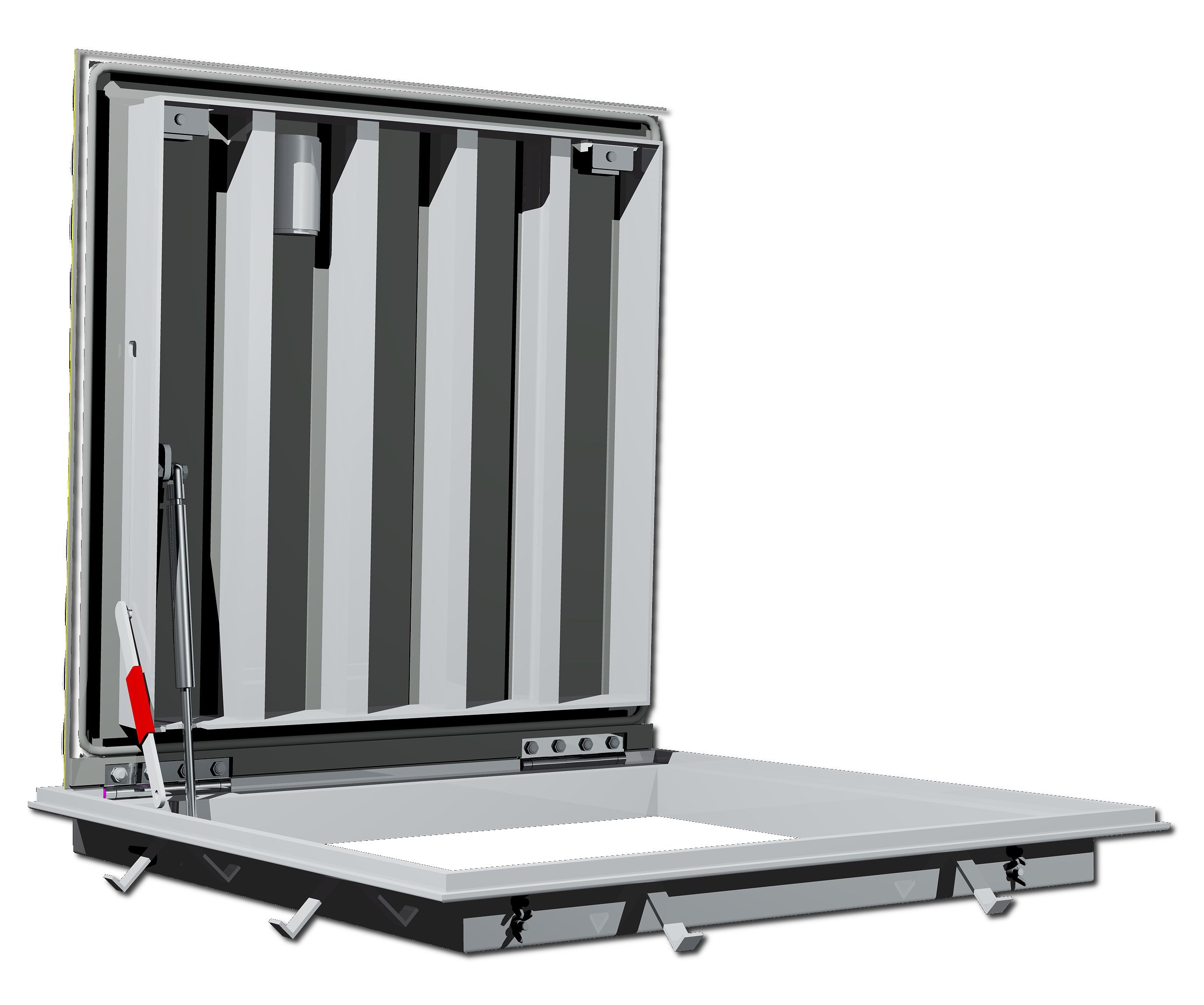

The Flood Resistant, sealed, gasketed and flush mounted floor access door is designed for applications where flooding may occur or in applications where odors and gases may need to be suppressed
.jpeg "W-APS / W-APD")
Material: Aluminum, steel, or stainless steel available
Frame: Flush mount angle type with strap anchors
Removable Center Beam: Gasketed, flood resistant (Double leaf design only)
Covers: 1/4” diamond plate reinforced for AASHTO H20 wheel loads.
Gasket: EPDM gasket around entire cover perimeter
Hardware: All 316 SS Hinges, nuts, bolts and washers
Hold-Open Device: 316 SS Hold-open arm with secondary latch mechanism
Lock Device: SS flood resistant camlocks

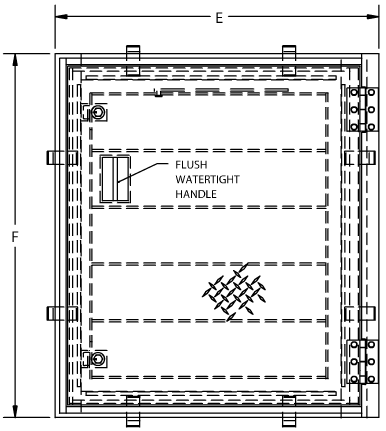

Lift Handle: Flush and flood resistant
Warranty: Ten (10) years on aluminum, Five (5) years on steel and stainless steel

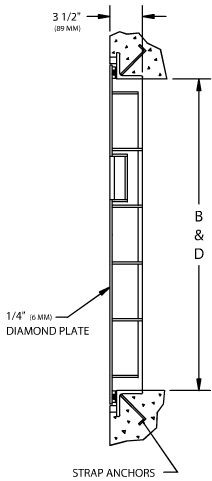

SPECIFICATIONS: The watertight (floodtight/gastight) floor access door shall be Model W-APS / W-APD as manufactured by U.S.F. Fabrication, Inc. with the size being specified on the plans. Door leaf shall be 1/4-inch thick aluminum diamond plate reinforced for a 1560 p.s.f. live load (capable of holding up to 25 ft. head of water). The bottom of the cover shall have a continuous groove to securely hold a 9/16-inch diameter EPDM gasket around its perimeter. The cover shall have 316 stainless steel floodtight cam locks to compress the gasket so that the door will not leak from standing water. The frame shall be 3/8-inch thick material with 3/16" x 1 1/2" strap anchors welded around the frame for casting into concrete. The floor access door shall be equipped with a flush floodtight handle that does not protrude above the cover, and a 316 stainless steel hold open arm with secondary latch mechanism that automatically keeps the cover in its upright, open position. The door shall have 316 stainless steel hinges with 316 stainless steel flat head bolts. Installation shall be in accordance with the manufacturer’s attached instructions. The door shall be manufactured and assembled in the United States. Manufacturer shall guarantee the door against defects in materials and workmanship for a period of ten years.
