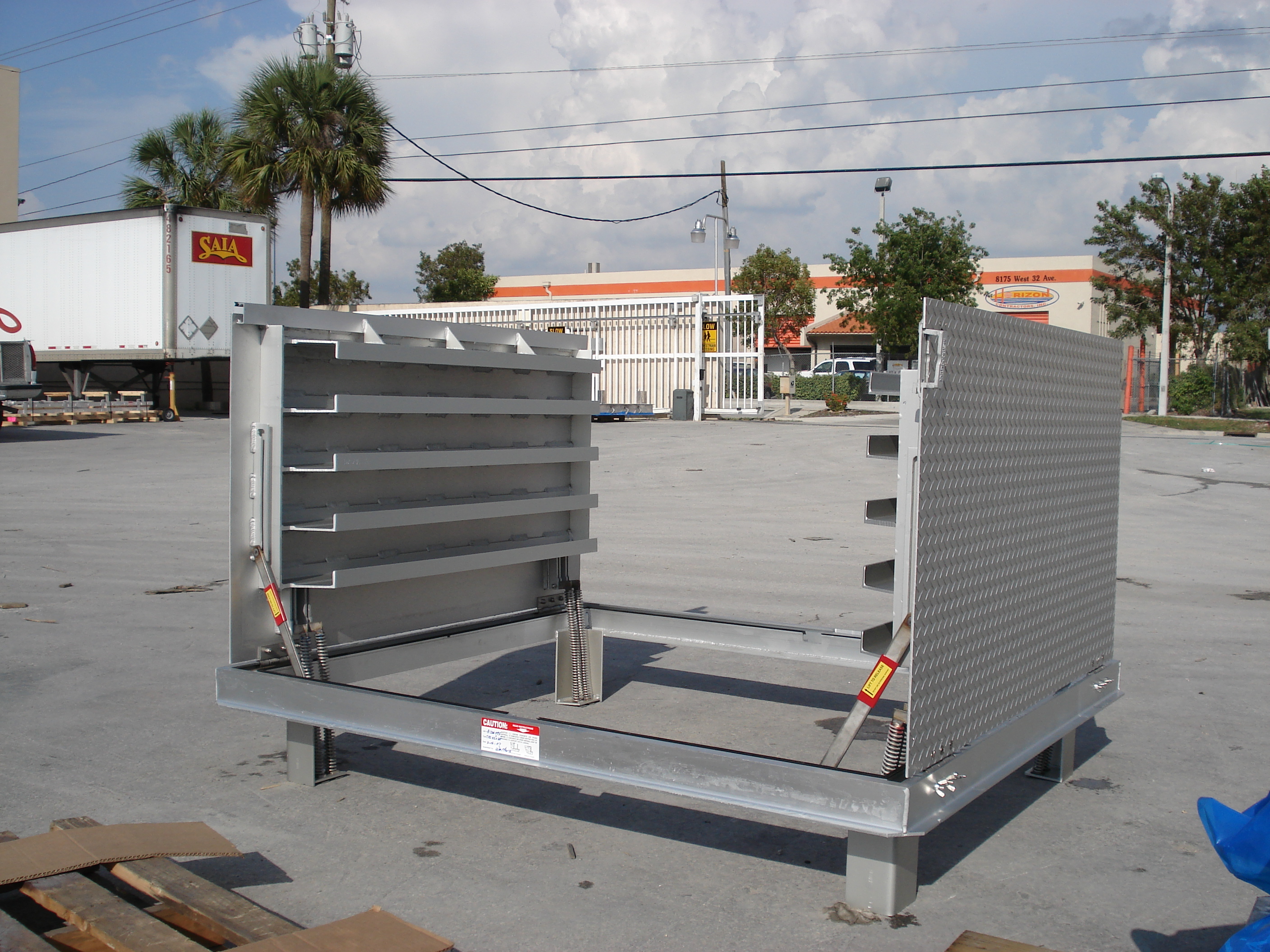

The heavy-duty (channel frame) type floor access door with a drainable frame is designed for interior and exterior applications to reduce the amount of water, dirt and debris entering the area below. It is designed for off-street locations that may occasionally receive ASASHTO H-20 wheel loads. NOT DESIGNED FOR PARKING LOTS OR OTHER PAVED AREAS. These doors should not be considered watertight. See watertight/flood resistant doors
Material: Aluminum, steel or stainless steel available

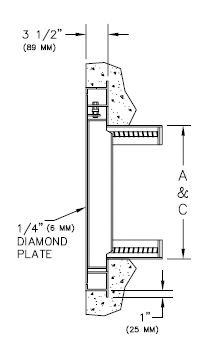

Frame: 1/4”material; extruded (aluminum only) or fabricated trough section with
Covers: 1/4” diamond plate reinforced for AASHTO H-20 wheel loads
Gasket: EPDM Odor Reduction Gasket
Hardware: All 316 SS nuts, bolts and washers
Hold-Open Device: 316 SS Hold-open arm with secondary latch mechanism
Lock device: 316 SS slamlock with threaded plug, removable outside key and fixed inside handle
Lift Assist: Springs or gas shocks

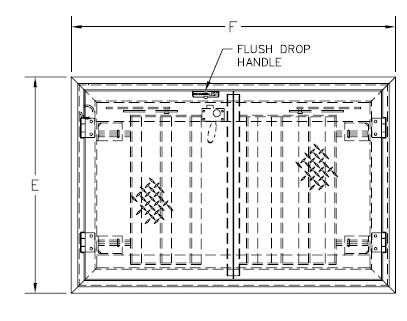

Lift Handle: Recessed lift handle lays flush with top of cover
Warranty: Ten (10) years on aluminum, five (5) years on steel and stainless steel
SPECIFICATIONS: The floor access door shall be Model THD as manufactured by U.S.F. Fabrication, Inc. with the size being specified on the plans. Door leaves shall be 1/4-inch thick aluminum diamond plate reinforced for an AASHTO H20 wheel load.Upon request, manufacturer shall provide structural calculations showing that the door design meets the loading requirements of AASHTO H20. (The access door is designed for off-street locations that may occasionally receive AASHTO H20 wheel loads.) The frame shall be extruded aluminum trough section with an integral anchor flange on all four sides. The frame shall include an EPDM odor reduction gasket that reduces the amount of odor that escapes from below the door and a 1-1/2 inch threaded drain coupling. The floor access door shall be equipped with a flush lifting handle that does not protrude above the cover and 316 stainless steel hold open arms with secondary latch mechanism that automatically keep the covers in their upright, open positions. The door shall have 316 stainless steel hinges and 316 stainless steel tamper resistant bolts/locknuts. The door shall be equipped with a watertight 316 stainless steel slamlock with threaded plug, removable outside key, and fixed inside handle. The slamlock latches onto a 316 stainless steel striker plate that is bolted to the frame. Installation shall be in accordance with the manufacturer’s attached instructions. The entire frame including the seat on which the reinforcing rests shall be supported by concrete or other material designed to support the specified load. The door shall be manufactured and assembled in the United States.
